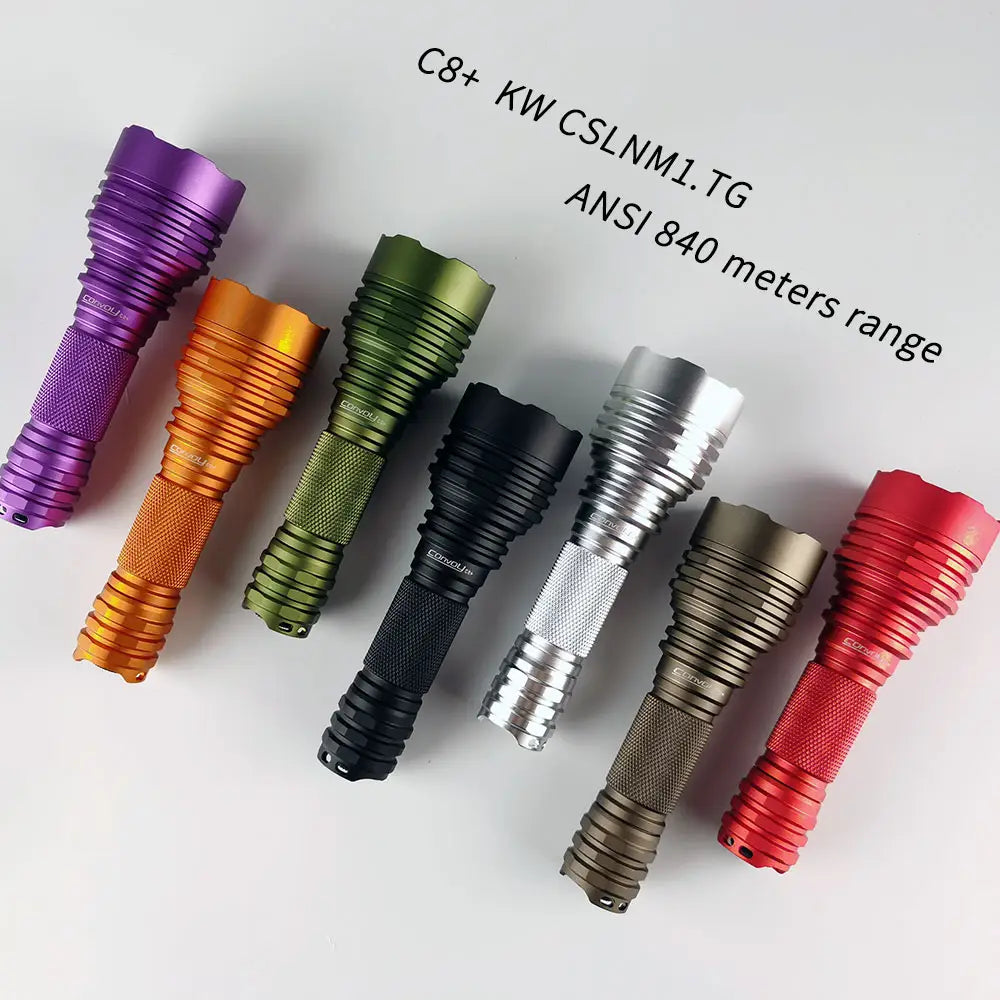

Convoy - C8+ 18650 Flashlight
(All C8+ can take a Illuminated Switch!)
Illuminated Switches Both Metal and Rubber
will work on this light.
Illuminated switches will work with ANY color C8+
KW CSLNM1.TG (OSRAM W1)
- 810 Lumens (max)
- 230000 Candela
- 959 Meters of Throw
- 6500K CCT
NOTE: This light does NOT come with a battery. Must use a 18650
THIS USB-C Battery works with the W1 Emitter driver.
🔦 Convoy C8+ – The Classic Tactical Thrower, Now Smarter
The Convoy C8+ is a high-performance flashlight packed with flexibility, power, and durability. Known for its iconic deep reflector and long-range throw, the C8+ now supports advanced UI groups, and temperature control.
Built tough with an aluminum alloy body and AR-coated glass lens, it's ready for everyday carry or mission-critical use.
🌟 Key Features:
- 🏗️ Material: Aluminum alloy body with excellent thermal management
- 🔍 Lens: AR-coated glass lens for high transmittance and clarity
- 🪞 Reflector:
- ✔️ Smooth
- ⚙️ Driver Options: 12-group configurable mode (see below)
- 🔁 Mode Memory: User configurable
- 🌡️ Temperature Regulation: Automatically reduces current as heat builds
- 🧍♂️ Tailstand: Yes – great for hands-free use
- ⚡ Tail Spring: Phosphor copper, gold-plated
- 🔋 Battery: 1× unprotected 18650 INR/IMR cell (not included)
- 📏 Size: 142mm (length) × 44.5mm (head) × 25.2mm (body)
- ⚖️ Weight: 145g
- 🧵 Accessory: Lanyard included
🔧 UI Breakdown – Choose Your Power:
- 🔹 12 Groups: Fully programmable with mode memory and strobe/battery-check/biking/SOS options (See the configuration table and instructions below.)
🚨 Notes & Warnings:
- ⚠️ Use only unprotected 18650 lithium batteries – high drain recommended
- 🕶️ Powerful output – avoid direct eye exposure
- 🔥 Temperature regulation doesn’t prevent heat — use with care at 100%
🔎 Ideal For:
- ✅ Long-range spotting and search
- ✅ Tactical use or emergency backup
- ✅ Flashlight enthusiasts who love customizable UI
- ✅ Anyone wanting classic throw with modern upgrades
🔧 12-Group UI Configuration Guide (Simplified)
This driver offers 12 customizable mode groups, plus optional mode memory.
🟡 Basic Operation:
- Click the switch: On/Off
- Tap the switch (quick half-press): Cycle through current mode group
- Enter Config Mode: Tap the switch 20 times quickly while the light is ON
⚙️ Config Mode Structure:
Once you're in config mode, the flashlight uses flashes to guide your selection (since it has no screen). Here's how it works:
✅ Option 1: Select Mode Group
- The light flashes once normally, then buzzes once (flash + buzz = Option 1)
- Tap the switch during this sequence to enter mode group selection
Then it will begin flashing up to 12 times, each count representing a different group. Tap during the flash count to select your group:
| Flash Count | Mode Group Contents |
|---|---|
| 1 Flash | 0.1%, 1%, 10%, 35%, 100%, Strobe, Biking, Battery-check |
| 2 Flashes | 0.1%, 1%, 10%, 35%, 100% |
| 3 Flashes | 100%, 35%, 10%, 1%, 0.1% |
| 4 Flashes | 1%, 20%, 100%, Strobe, Biking, Battery-check, SOS |
| 5 Flashes | 1%, 20%, 100% |
| 6 Flashes | 100%, 20%, 1% |
| 7 Flashes | 0.1%, 1%, 10%, 50%, Strobe, Biking, Battery-check, SOS |
| 8 Flashes | 0.1%, 1%, 10%, 50% |
| 9 Flashes | 50%, 10%, 1%, 0.1% |
| 10 Flashes | 1%, 10%, 35%, 100% |
| 11 Flashes | 100%, 20%, Strobe |
| 12 Flashes | 100% only |
🔁 Option 2: Toggle Mode Memory
- The light will flash twice normally, then buzz (flash flash + buzz = Option 2)
- Tap the switch during this sequence to turn mode memory ON or OFF
- If you don’t interact, it exits and keeps your current settings
🔋 Battery Check Mode:
The light can flash to show battery voltage:
- < 2.95V – 1 flash
- 2.95 – 3.25V – 2 flashes
- 3.25 – 3.55V – 3 flashes
- 3.55 – 3.85V – 4 flashes
- > 3.85V – 5 flashes
