// SYSTEM ALERT // SYSTEM ALERT // WARNING // WARNING //
!!! THIS FLASHLIGHT DOES NOT COME WITH A CHARGER OR A BATTERY !!!
IF YOU DO NOT OWN THE PROPER BATTERY AND AN EXTERNAL CHARGER, YOU WILL NEED ONE.

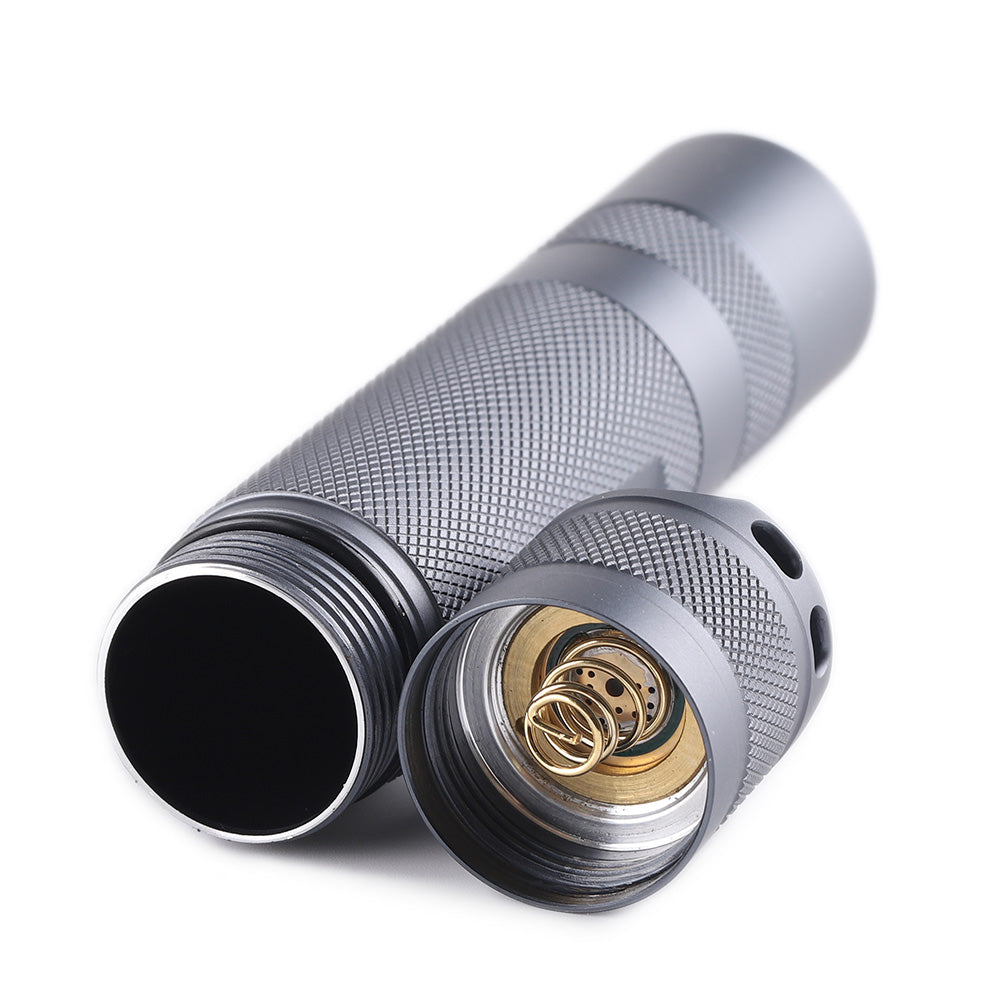

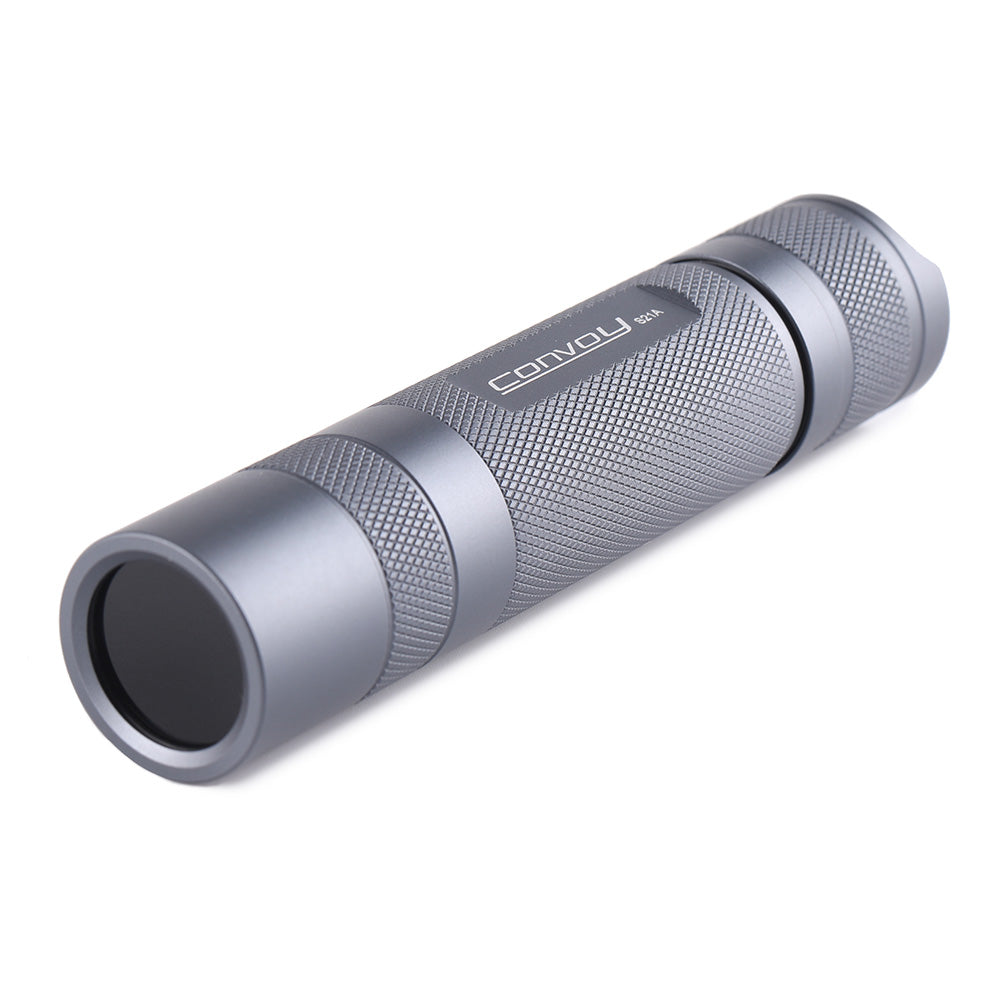

Convoy - S21A UV 365nm 21700 Flashlight with Nichia 233B, ZWB2 Filter
Only available in the gray color pictured below.
The Convoy S21A UV 365nm is a compact single-emitter 21700 UV inspection light built around the Nichia 233B (NVSU233B) — a purpose-made 365nm UV-A LED — with a ZWB2 filter installed standard to block visible leakage and pass true ultraviolet.
Host, driver and emitter, laid out plainly: the S21A is Convoy's lighter 21700 platform (26.6mm body, 123mm long, 88g), the driver runs 3 modes — 5% / 30% / 100% — up to 1.4A, and the Nichia 233B is datasheet-rated for 1450mW typical radiant flux at its 1.0A test point.
This flashlight does NOT have USB charging — remove the battery to charge it externally.
What 365nm UV Is Good For
- Mineral & fossil fluorescence inspection
- Scorpion hunting
- Leak detection with UV-reactive dyes
- Charging glow-in-the-dark and phosphorescent materials
- Currency and document authentication
Good to Know Before You Buy
- Requires 1x unprotected 21700 lithium battery, not included. No onboard charging.
- Smaller and lighter than Convoy's M21A/L21B UV lights, trading some raw output for a more compact carry.
- 365nm UV-A at this output is an eye and skin hazard — never point it at eyes or skin, and UV-blocking eyewear is recommended for extended use.
Specs
| Radiant Flux | ~1450 mW typ at Nichia's 1.0A test point; Convoy's driver runs it up to 1.4A, modestly above that test current |
|---|---|
| Peak Wavelength | 365 nm nominal (Nichia NVSU233B) |
| ZWB2 Filter | Yes, installed standard |
| Battery Format | 1 x 21700 lithium, unprotected |
| Battery Included | No |
| Charging Port | none |
| Length | 123.0 mm |
| Body Diameter | 26.6 mm |
| Weight (no cell) | 88 g |
| Material | Aluminum alloy |
| Modes | 3 (5% / 30% / 100%) |
| Reflector | Smooth |
| Lens | ZWB2 filter glass - serves as the lens |
| Mode Memory | Yes |
| Tailstands | Yes |
| Special Features | Low-voltage warning; reverse-polarity protection; no onboard charging. HAZARD: 365nm UV-A is an eye/skin hazard - avoid direct exposure, UV-blocking eyewear recommended for extended use. |
